Tuhorse 1.5 HP 4" Submersible Well Pump Complete Set Incl Motor, Pump-end and Control Box. 380ft Maxhead, Rated 15gpm, 22gpm Max. 1-phase 230v, 60Hz, 1.1kw, 3450 rpm, 1 Year Warranty. (TH4-015-10)

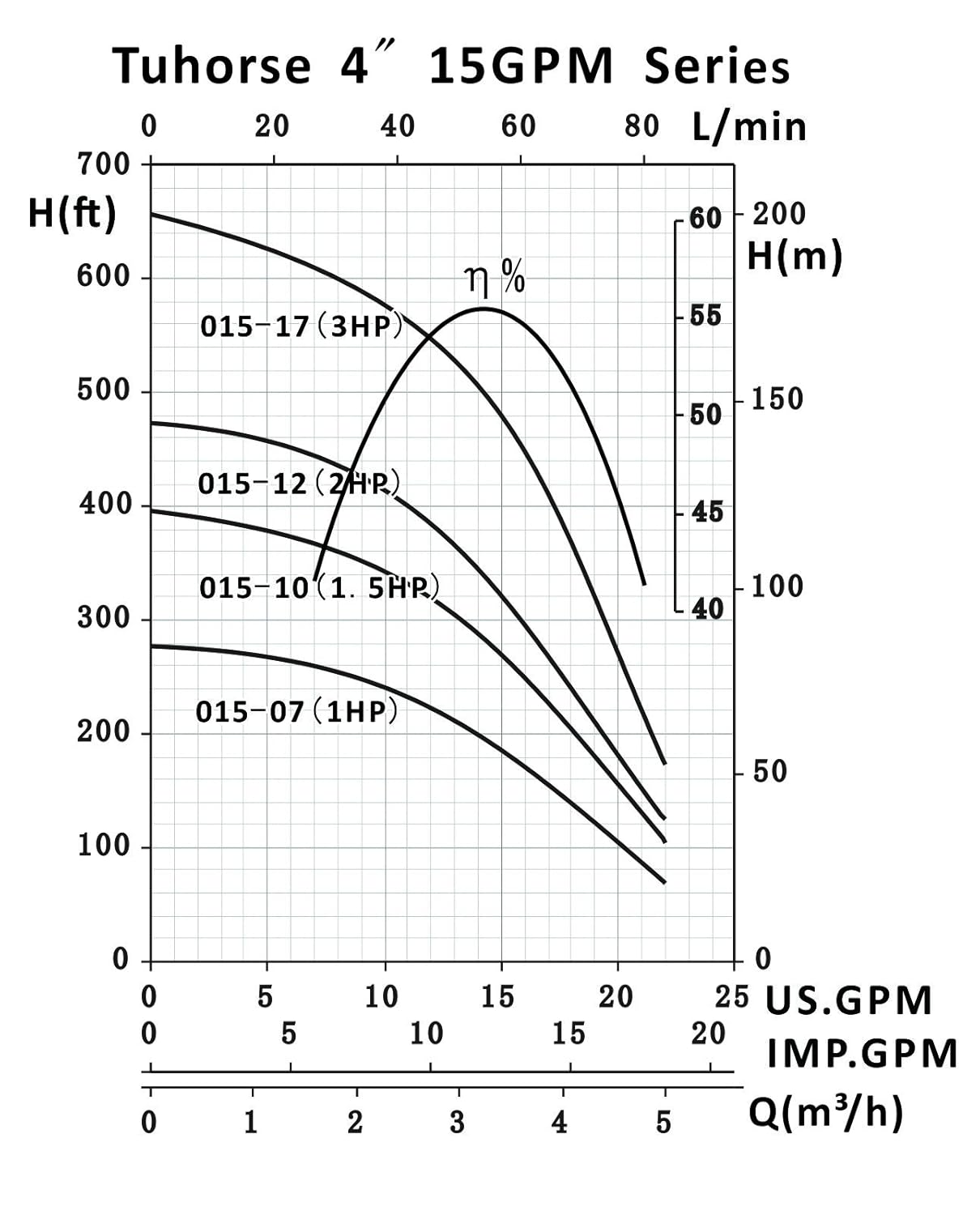

This complete submersible well pump set includes a 10 stage pump-end, a 1.5HP heavy duty oil cooled submersible motor, and a dual capacitor metal cased control box equipped with motor overload protectors. Flow at typical depth: 21GPM at 125ft., 17GPM at 210ft., 14GPM at 275ft., 7GPM at 360ft. Connector terminal inside the control box accepts up to AWG #8 solid wire or #6 stranded wire. This pump runs on 230V, 60Hz, Single Phase Power, and the motor uses 3 wires + 1 ground wire. Net weight 40Lb.(18Kg); Net length: 35” (880mm). 1 year warranty from the date the items are received. External check valve(not included) is required in a water tight system but is not required for free flow applications.

• Just slightly under 4” diameter, fits 4" and larger wells
• 1.25 inch NPT brass outlet (discharge)
• 10 Stages. Cut off head 380 feet. Max flow(5 - 100ft): 22GPM, rated 15GPM
• Metal cased control box includes a 70uF start and 25uF run capacitor
• Meets NEMA industrial standards, manufactured under ISO 9001:2000, conforms to IEC34-ICE standards.
